304 316L stainless steel coiled tubing
304 / 316L stainless steel coiled tubing is designed for efficient heat transfer, corrosion resistance, and durability. It is widely used in brewing condensers, cooling equipment, HVAC systems, refrigeration units, heat exchangers, and other industrial applications. With smooth inner surface, uniform wall thickness, and flexible coil design, our stainless steel coils ensure reliable performance in both commercial and industrial environments. Custom coil sizes and configurations are available to meet diverse engineering needs.

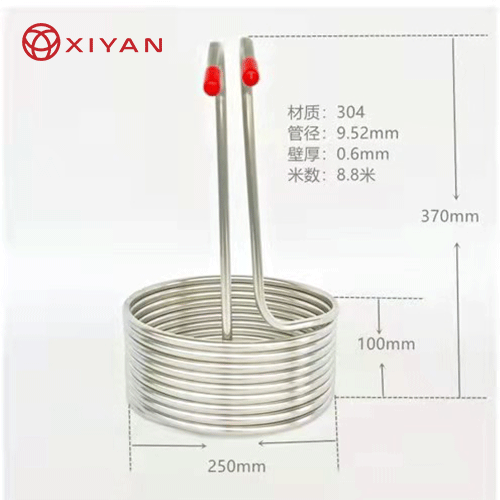

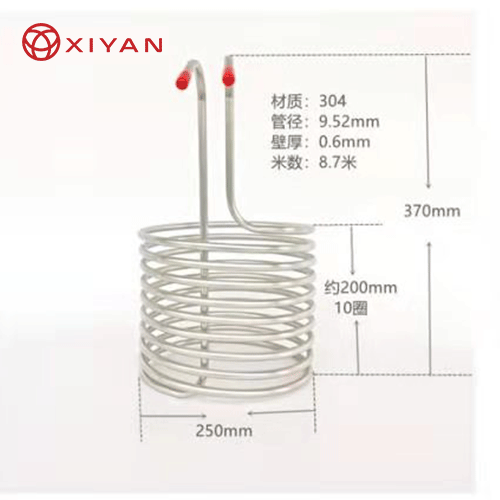

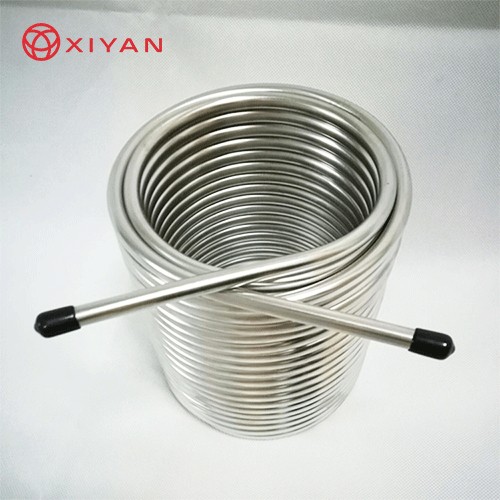

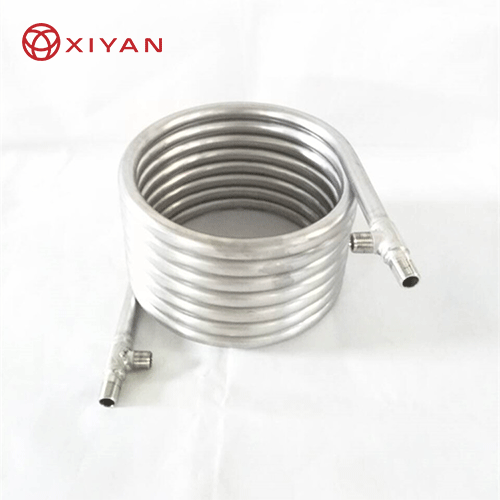

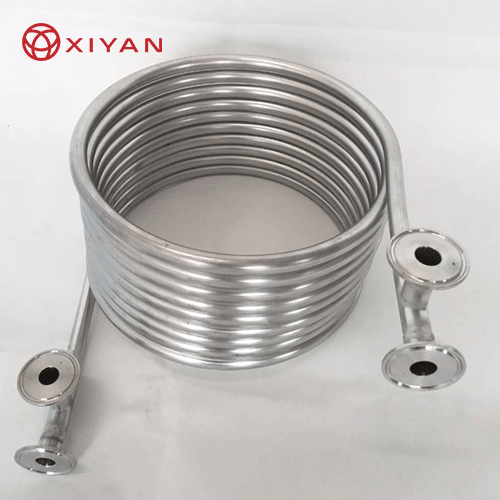

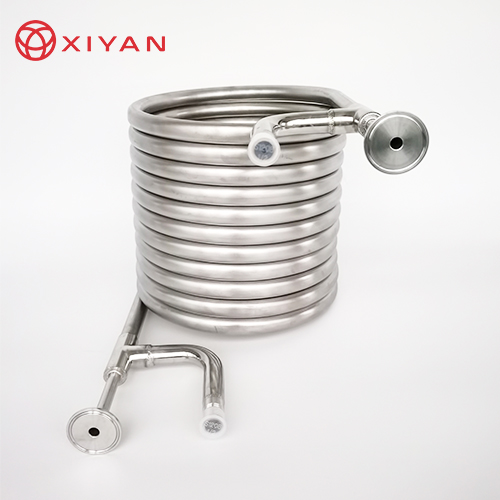

Product name: 304 316L stainless steel coiled tube/wort chiller/ss counterflow coiled tube
Standard: ASTM A269, A312,A213,A249,A790
Material grade: 304/304L,316L,321,310S,904L
Outer diameter: 1mm ~ 28mm
Wall thickness: 0.1mm ~ 3mm
Length: ≦6000 meters
Tolerance:
a)Outer diameter: +-0.1mm
b)Wall thickness: +-10% or as customer’s request
c)Length: ≤ +-10mm
Surface: Satin,polish
Application: Medical,industry,oil,gas,machinery,etc..

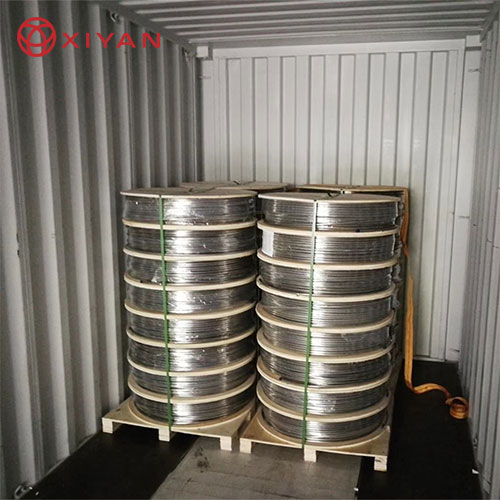

Packing: wooden case,wooden pallet(please send details packing to us if you have special requests)
Payment term: T/T before shipment
Chemical composition | 201 | 304 | S31803 | C | ≤0.15 | ≤0.08 | ≤0.030 | |
≤1.00 | ≤1.00 | ≤1.00 | Mn | 7.5-10.0 | ≤2.00 | ≤1.20 | ||
≤0.060 | ≤0.045 | ≤0.030 | S | ≤0.030 | ≤0.030 | ≤0.020 | ||
16-18 | 18-20 | 21-23 | Ni | 4.0-6.0 | 43022 | 6.0-8.0 | ||
|
| 2.5-3.5 | N | ≤0.25 |
| 0.24-0.32 | ||
|
|
| Mechanical properties | 201 | 304 | S31803 | ||
≥655 | ≥515 | ≥620 | ||||||
≥260 | ≥205 | ≥450 | ||||||
≥35 | ≥35 | ≥25 | ||||||
≤230 | ≤200 | ≤303 | ||||||
